wila press brake punch

  • Tool System: Wila System
  • Angle: 28°,60°,88°,90°
  • Radius: R2.0mm
  • Height: 135mm,157mm,200mm
  • Maximum load: 800kN/m
  • Material: 42CrMo4
Inquire Now





Toolspress

 Cat.No.

Wila

 Cat.No.

Max Loading

T/m

Weight

 Kg/m

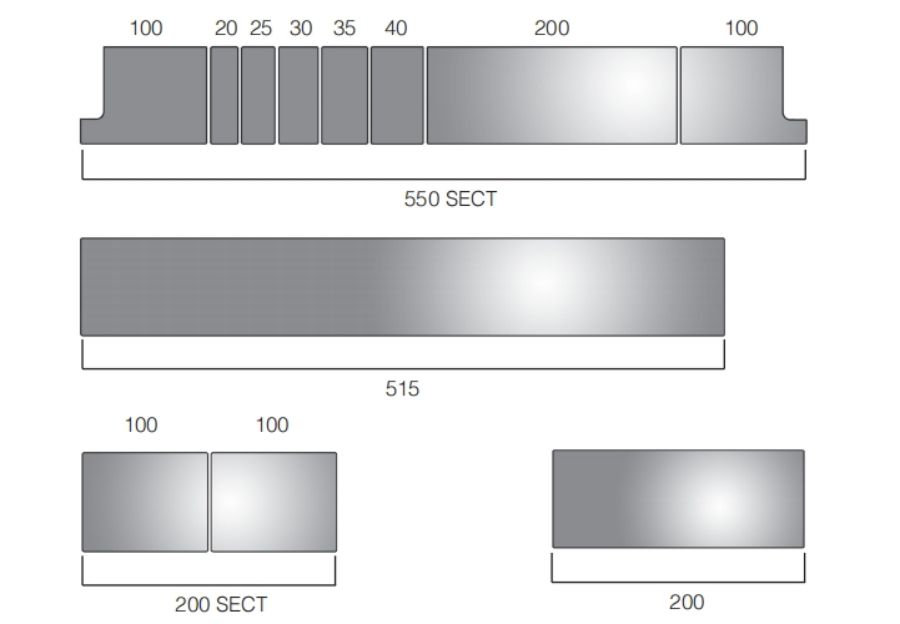

 Angle Height Possible lenghts

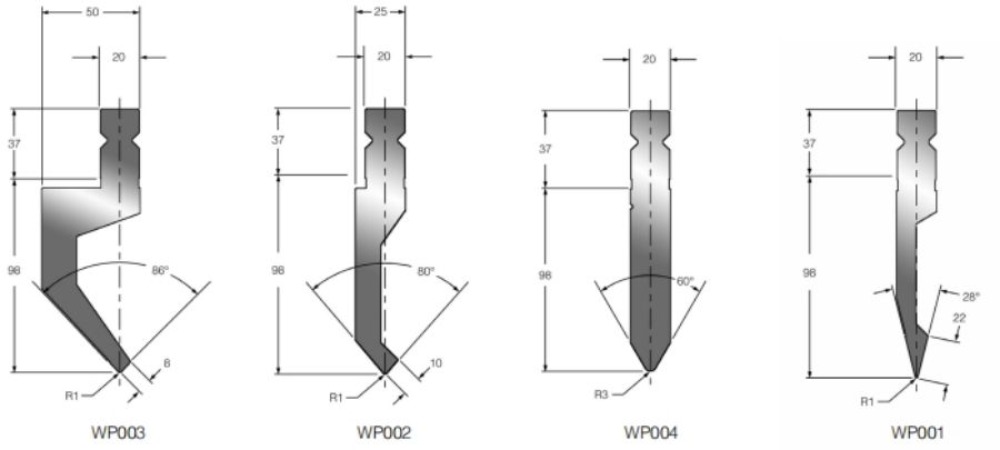

WP003 BIU-003 65 24 86° 135 515 /200 /550
WP002 BIU-002 100 18 80° 135 515 /200 /551
WP004 BIU-004 160 20.5 60° 135 515 /200 /552
WP001 BIU-001 100 145  28° 135 515 /200 /553

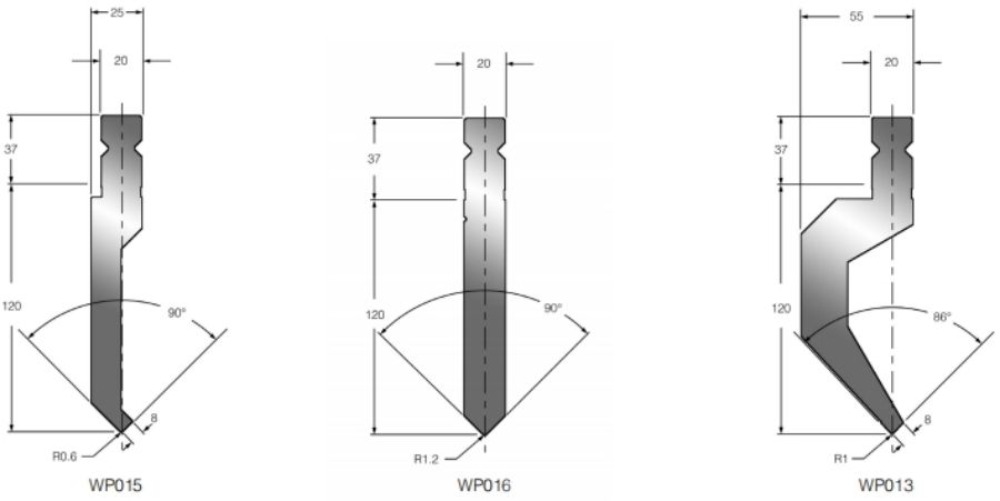

WP015 BIU-015 60 21 90° 157 515 /200 /554
WP016 BIU-016 100 24 90° 157 515 /200 /555
WP013 BIU-013 65 30 86° 157 515 /200 /556

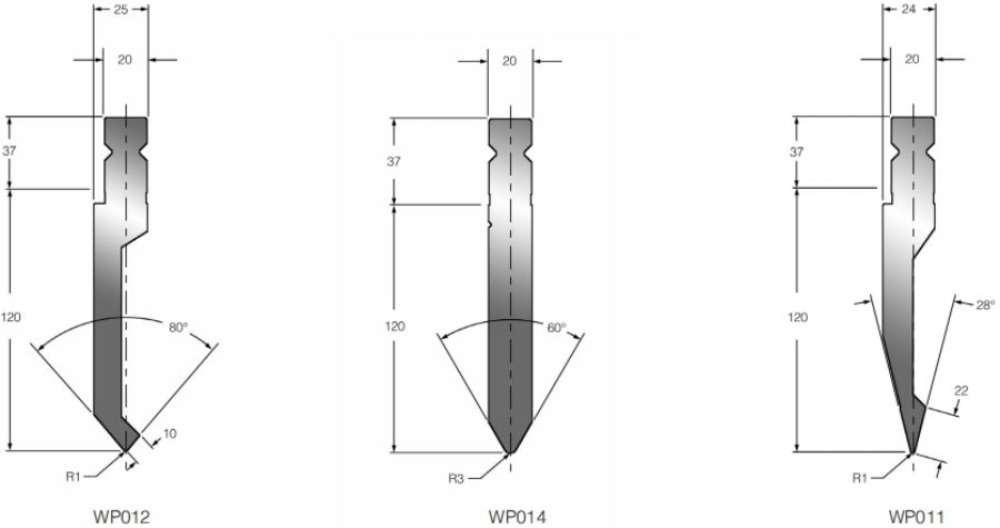

WP012 BIU-012 100 21 80° 157 515 /200 /557
WP014 BIU-014 160 24 60° 157 515 /200 /558
WP011 BIU-011 100 185  28° 157 515 /200 /559

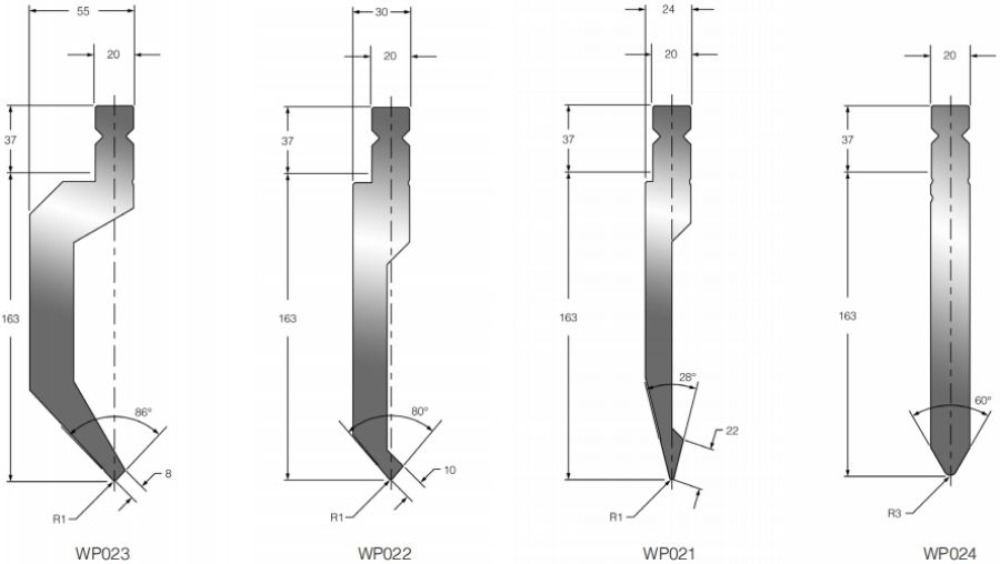

WP023 BIU-023 65 38 86° 200 515 /200 /560
WP022 BIU-022 80 315  80° 200 515 /200 /561
WP021 BIU-021 70 24 28° 200 515 /200 /562
WP024 BIU-024 160 31 60° 200 515 /200 /563

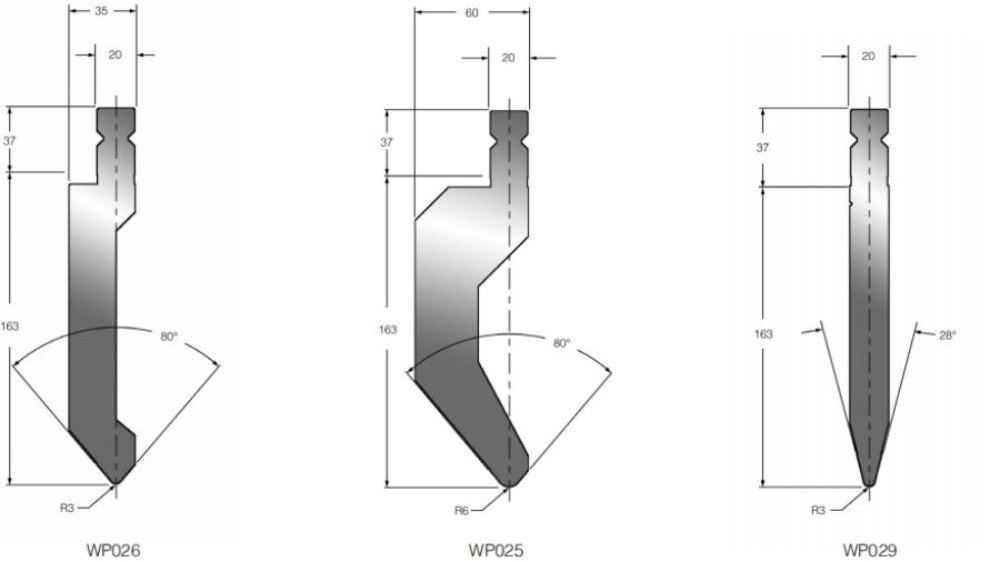

WP026 BIU-026 140 38 80° 200 515 /200 /564
WP025 BIU-025 130 53 80° 200 515 /200 /565
WP029 BIU-029 160 303  28° 200 515 /200 /566

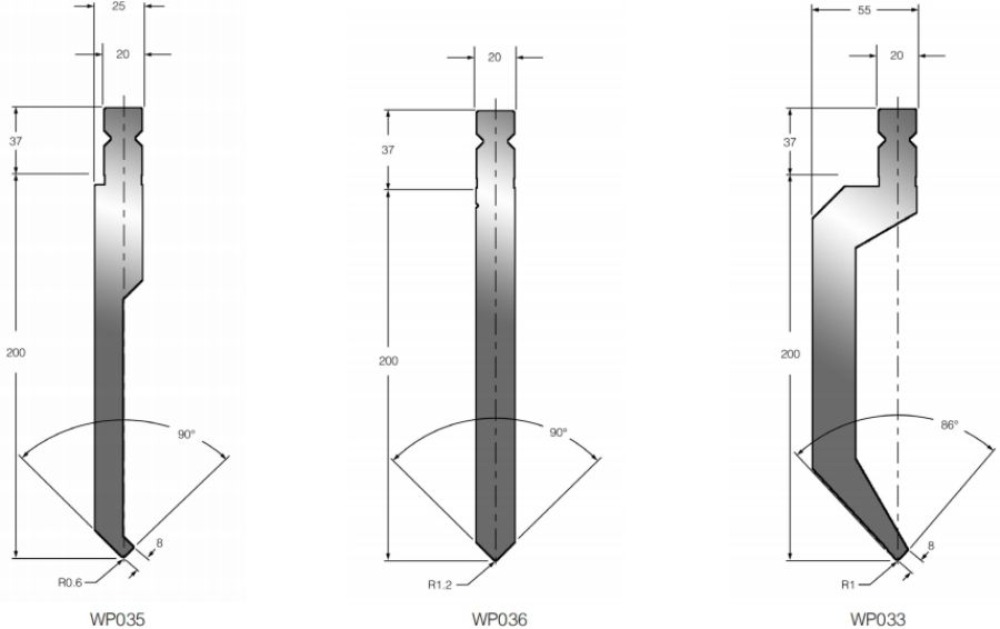

WP035 BIU-035 60 34 90° 237 515 /200 /567
WP036 BIU-036 100 37 90° 237 515 /200 /568
WP033 BIU-033 50 45 86° 237 515 /200 /569

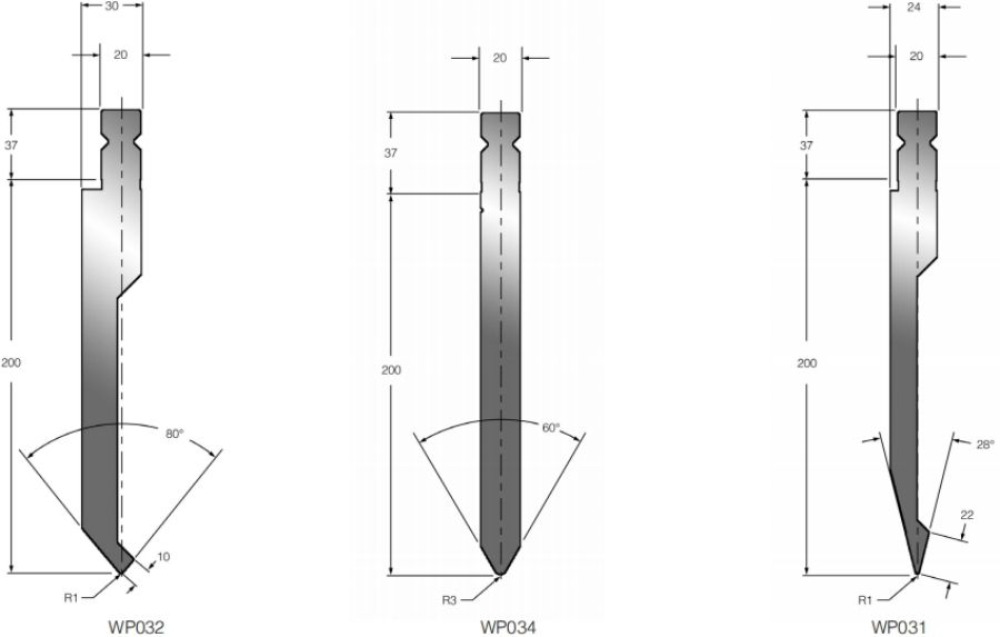

WP032 BIU-032 70 384  80° 237 515 /200 /570
WP034 BIU-034 160 366  60° 237 515 /200 /571
WP031 BIU-031 60 29 28° 237 515 /200 /572

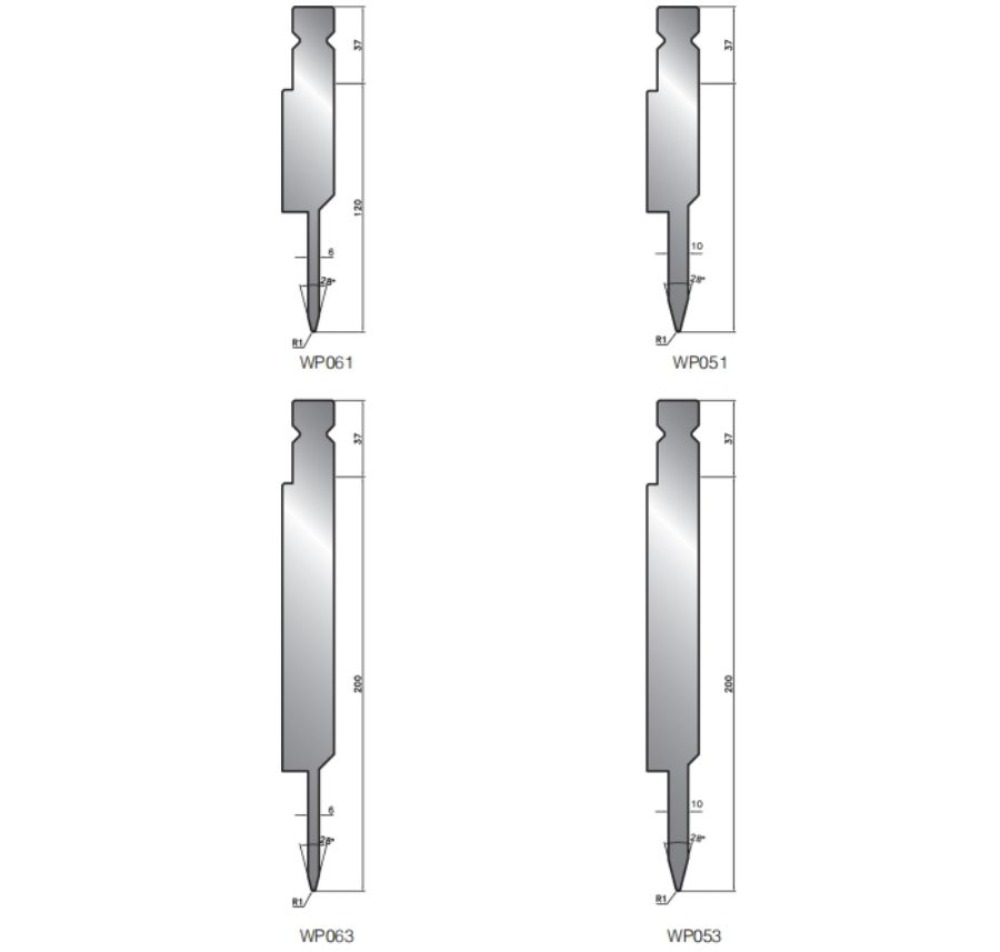

WP061 BIU-061 50 202  28° 157 515 /200 /573
WP051 BIU-051 100 22 28° 157 515 /200 /574
WP063 BIU-063 50 379  28° 237 515 /200 /575
WP053 BIU-053 100 379  28° 237 515 /200 /576

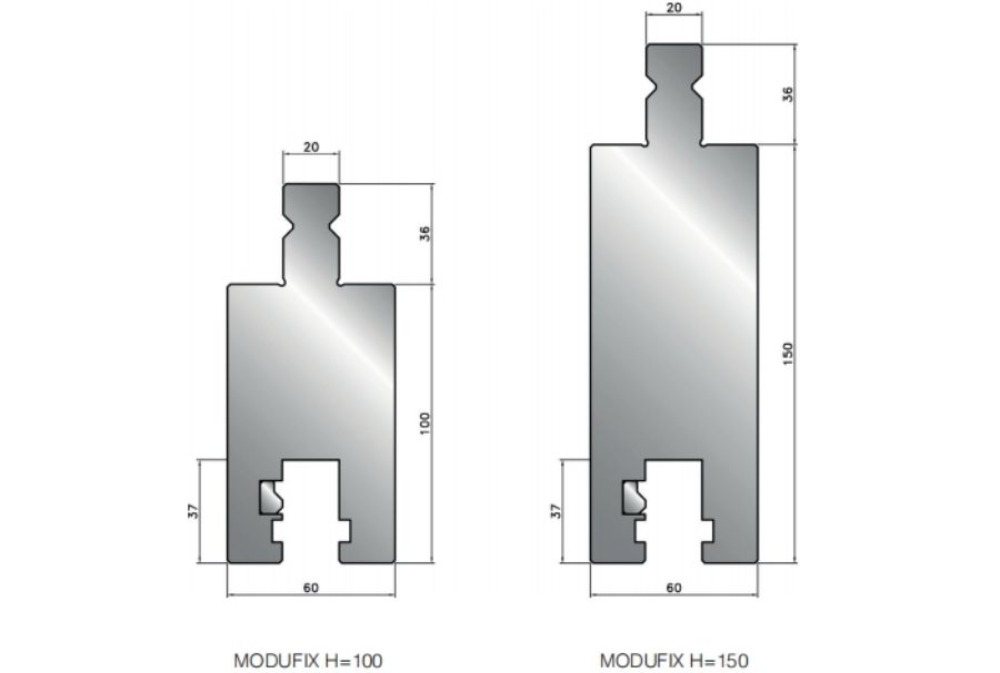

Modufix H=100   150 453  100 100 100/550S
Modufix H=150   150 686  150 150 100/550S
