Mold Composition:
Press brake punches:
| Punch Type | Main Application |
| Straight Punch | Fabricated angles ≥90° |
| Goose Neck Punch | Fabricated angles ≥90° |
| Acute Punch | Fabricated angles ≥30° |
Press brake dies:
| Punch Type | Main Application |
| Sing V Die | 1. While V angle = 88°(ref), able to bend angles ≥ 90° |
| Double V Die | 2. While V angle = 30°(ref), able to bend angles ≥ 30° |
Lengths available:
Tool System:Amada Systeme 1-V dies Angle: 30° Die Opening:V6,V8,V10,V12,V16,V20,V25 Radius: R1.0 mm Height: 60 mm Maximum load: 550 kN/m Material: 42CrMo4
Learn More
Tool System:Amada Systeme 1-V dies Angle: 85° Die Opening:V6,V8,V10,V12,V16,V20,V25 Radius: R1.0 mm Height: 60 mm Maximum load: 550 kN/m Material: 42CrMo4
Learn More

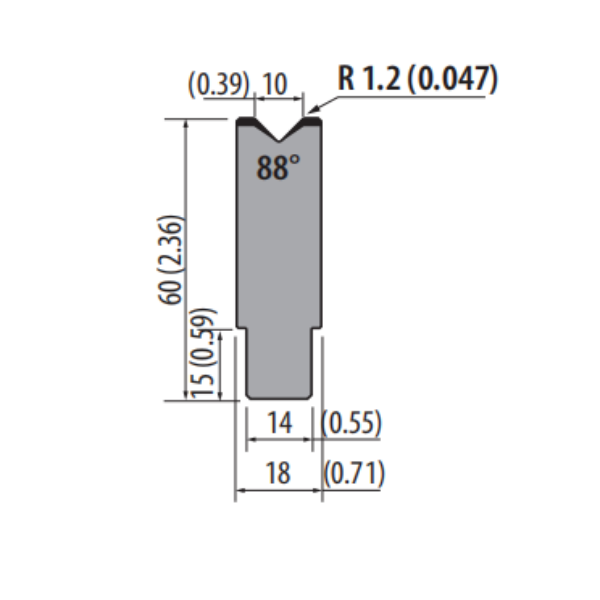

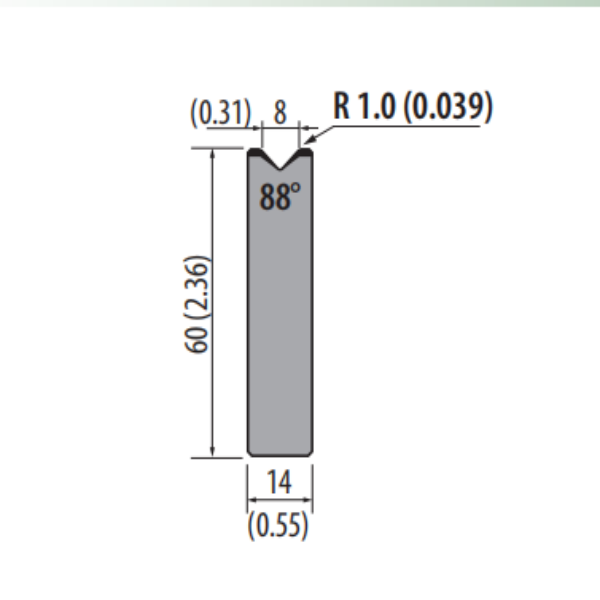

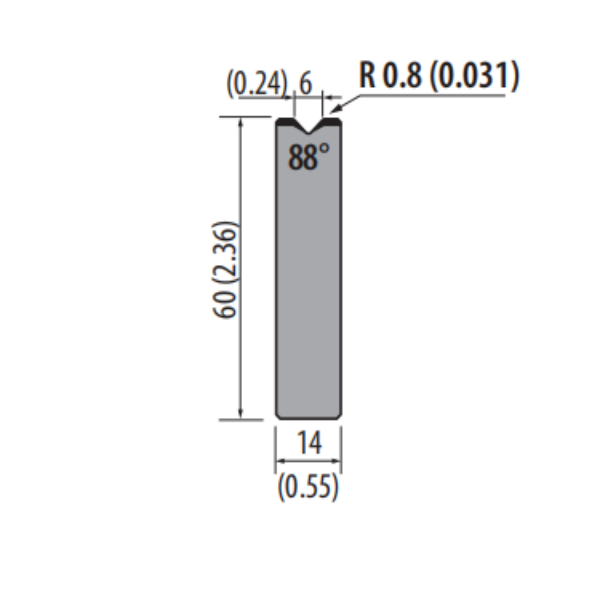

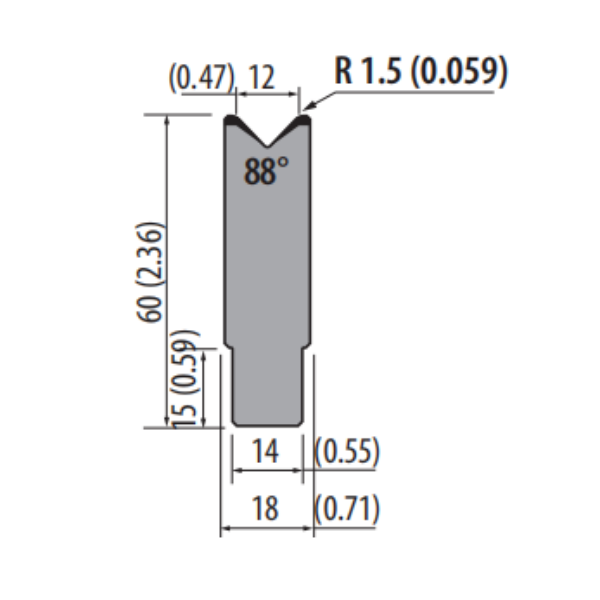

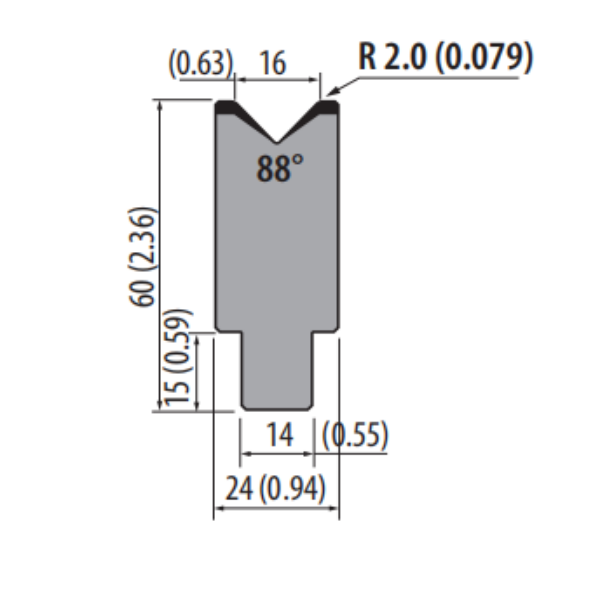

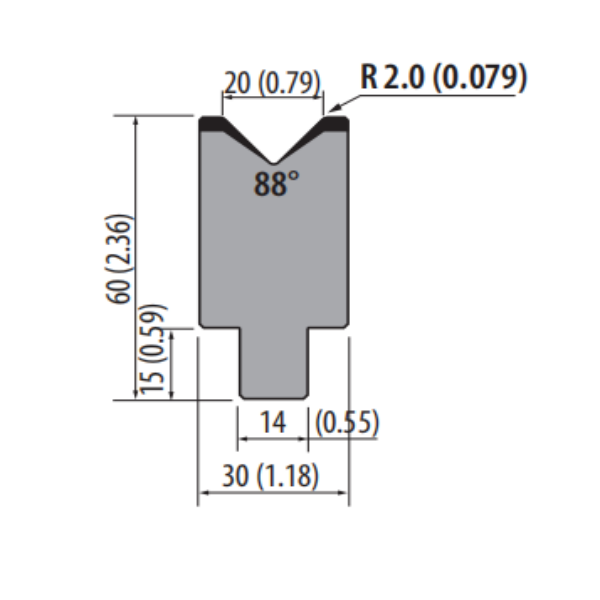

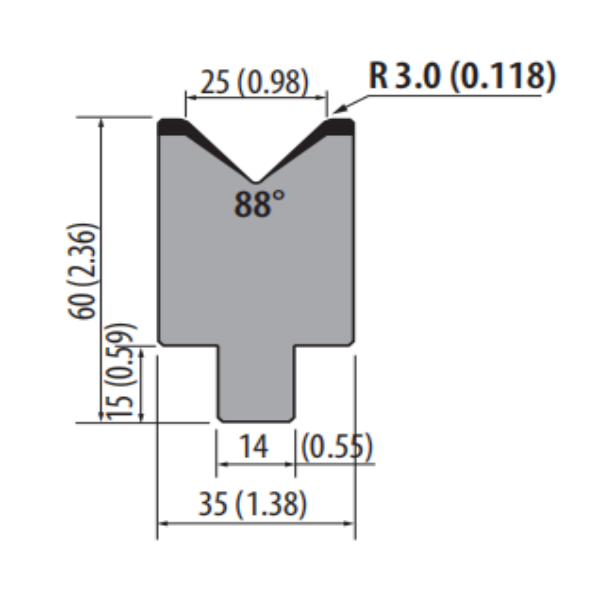

Tool System:Amada Systeme 1-V dies Angle: 88° Die Opening:V6,V8,V10,V12,V16,V20,V25 Radius: R1.0 mm Height: 60 mm Maximum load: 550 kN/m Material: 42CrMo4
Learn More
Tool System:Amada Systeme 1-V dies Angle: 60° Die Opening:V6,V8,V10,V12,V16,V20,V25 Radius: R1.0 mm Height: 86mm Maximum load: 550 kN/m Material: 42CrMo4
Learn More
Tool System:Amada Systeme 1-V dies Angle: 80° Die Opening:V6,V8,V10,V12,V16,V20,V25 Radius: R1.0 mm Height: 95mm Maximum load: 550 kN/m Material: 42CrMo4
Learn More
Tool System:Amada Systeme 1-V dies Angle: 80° Die Opening:V125 Radius: R1.0 mm Height: 103mm Maximum load: 550 kN/m Material: 42CrMo4
Learn More
