press brake die tools mold
Home / AMADA SYSTEM /

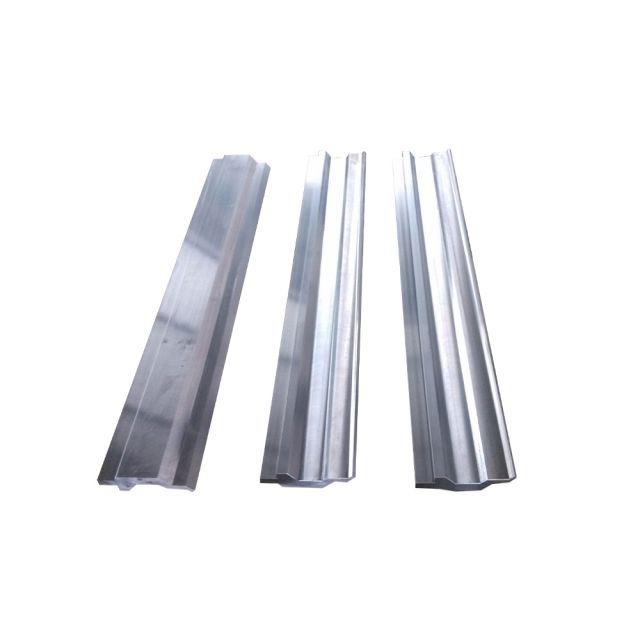

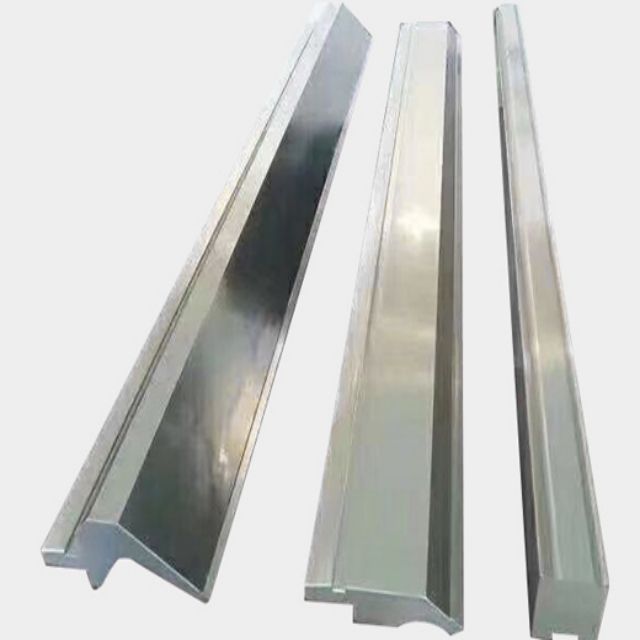

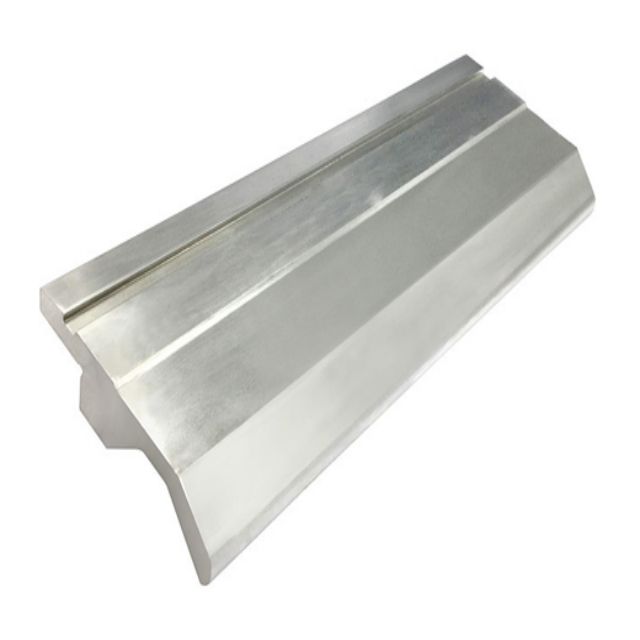

press brake die tools mold

press brake die tools mold
press brake die tools mold
press brake die tools mold
press brake die tools mold

press brake die tools mold

  • Tool System: Amada System
  • Angle: 30°
  • Radius: R0.6mm
  • Effective Height: 128mm
  • Total Height: 158mm
  • Maximum load: 800kN/m
  • Material: 42CrMo4
Inquire Now

We offer rich selection of standard press brake tools for AMADA Style system. This system isusually installed on main European press brakes

and 90% of press brakes with origin fromAsia.AMADA system is one of the most comfortable.



Main manufacturers supported:

Press brake tools for machines:Accurl,Accurpress,ACL,Adira,Amada,Atlantic,Baykal,BL,Boschert,Boutillon,Bystronic Beyeler,Euro-B,Coastone,

Colgar,Dener,Deratech,Durmazlar,Ermaksan,Farina,Gade,Gasparini,Gecko,Gilardi,Gizelis,Haco,Hindustan,HPM,Iturrospe,Jfy,JMT,LFK,Metfab,

MVD,Oriance,Prima Power,Promecam,Rico,Salvagnini,Schiavi,SMD,Sorg,Somo,Vicla,Vimercati,Warcom,Yawei,etc.

Mold Composition:





Press brake punches:

Punch Type Main Application
Straight Punch Fabricated angles ≥90°
Goose Neck Punch Fabricated angles ≥90°
Acute Punch Fabricated angles ≥30°

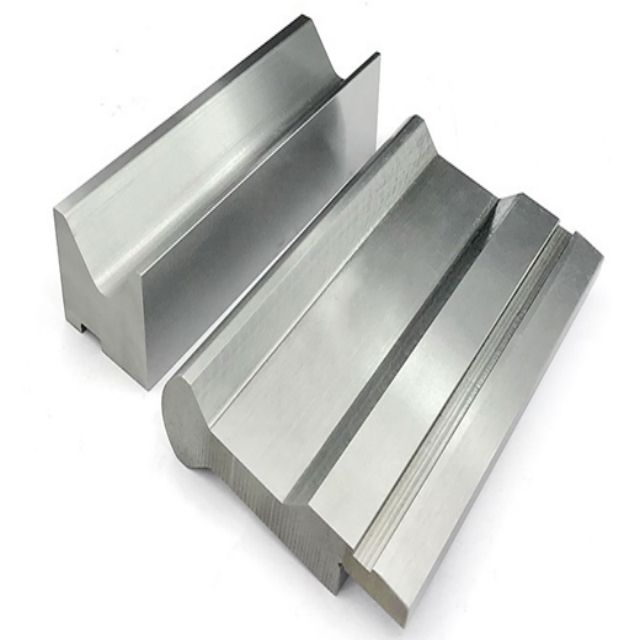

Press brake dies:

Punch Type Main Application
Sing V Die 1. While V angle = 88°(ref), able to bend angles ≥ 90°
Double V Die 2. While V angle = 30°(ref), able to bend angles ≥ 30°





Lengths available:

Hot Tags : press brake tools press brake punches press brake dies amada press brake mold amada press brake punch amada press brake tools
