Tool System:Amada Systeme 1-V dies
Angle: 85°
Die Opening:V6,V8,V10,V12,V16,V20,V25
Radius: R1.0 mm
Height: 80mm
Maximum load: 550 kN/m
Material: 42CrMo4
Tool System:Amada Systeme 1-V dies
Angle: 85°
Die Opening:V6,V8,V10,V12,V16,V20,V25
Radius: R1.0 mm
Height: 120mm
Maximum load: 550 kN/m
Material: 42CrMo4
Tool System:Amada Systeme 1-V dies
Angle: 88°
Die Opening:V6,V8,V10,V12,V16,V20,V25
Radius: R1.0 mm
Height: 80mm
Maximum load: 550 kN/m
Material: 42CrMo4
Tool System:Amada Systeme 1-V dies
Angle: 88°
Die Opening:V6,V8,V10,V12,V16,V20,V25
Radius: R1.0 mm
Height:120mm
Maximum load: 550 kN/m
Material: 42CrMo4
Tool System:Amada Systeme 1-V dies
Angle: 90°
Die Opening:V6,V8,V10,V12,V16,V20,V25
Radius: R1.0 mm
Height: 80mm
Maximum load: 550 kN/m
Material: 42CrMo4

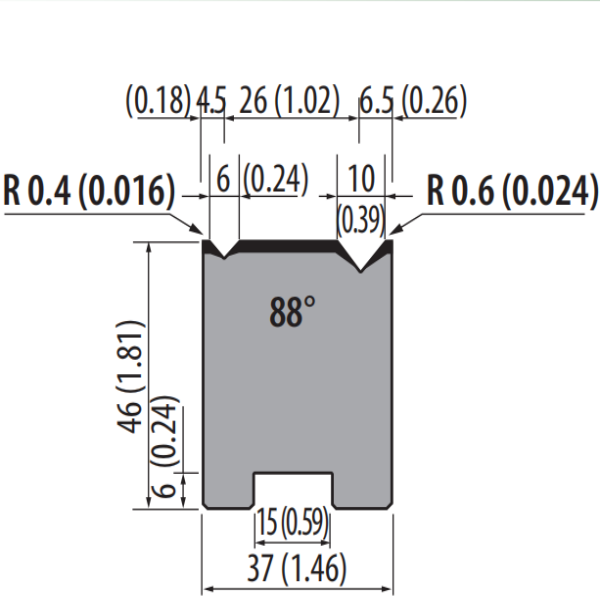

Tool System:Amada Systeme 2-V dies
Angle: 88°
Die Opening:V6-V10,V8-V12,V14-V18,V12-V20
Radius: R1.0 mm
Height: 46mm
Maximum load: 550 kN/m
Material: 42CrMo4

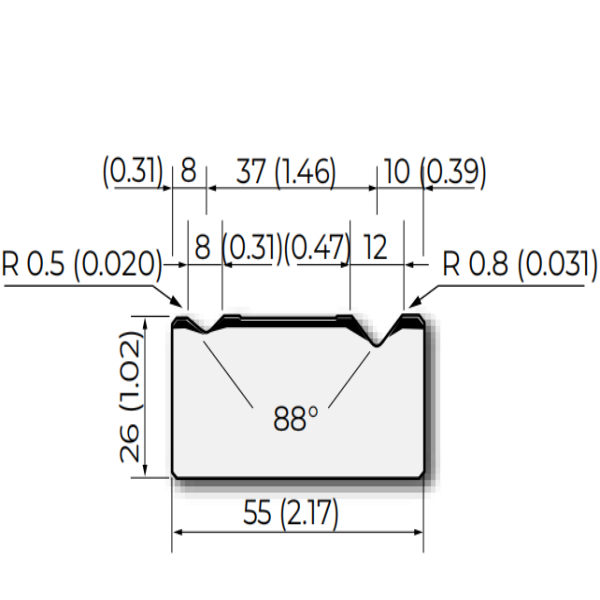

Tool System:Amada Systeme 2-V dies
Angle: 88°
Die Opening:V6-V10,V8-V12,V14-V18,V12-V20
Radius: R1.0 mm
Height: 26mm
Maximum load: 550 kN/m
Material: 42CrMo4

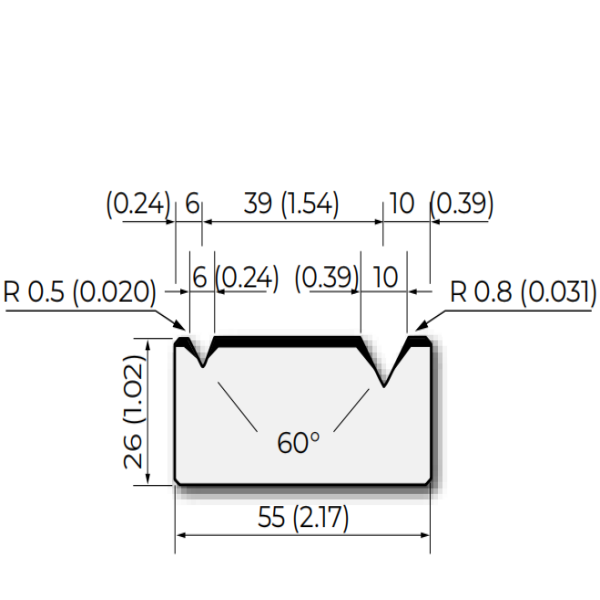

Tool System:Amada Systeme 2-V dies
Angle: 60°
Die Opening:V6-V10,V8-V12,V14-V18,V12-V20
Radius: R1.0 mm
Height: 26mm
Maximum load: 550 kN/m
Material: 42CrMo4
Tool System:Amada Systeme 2-V dies
Angle: 35°
Die Opening:V6-V10,V8-V12,V14-V18,V12-V20
Radius: R1.0 mm
Height: 26mm
Maximum load: 550 kN/m
Material: 42CrMo4
Tool System:Amada Systeme 4-V dies
Angle: 88°
Die Opening:V6-V10,V8-V12,V14-V18,V12-V20
Radius: R1.0 mm
Height: 68mm
Maximum load: 550 kN/m
Material: 42CrMo4
